[ VTOL SERIES ]

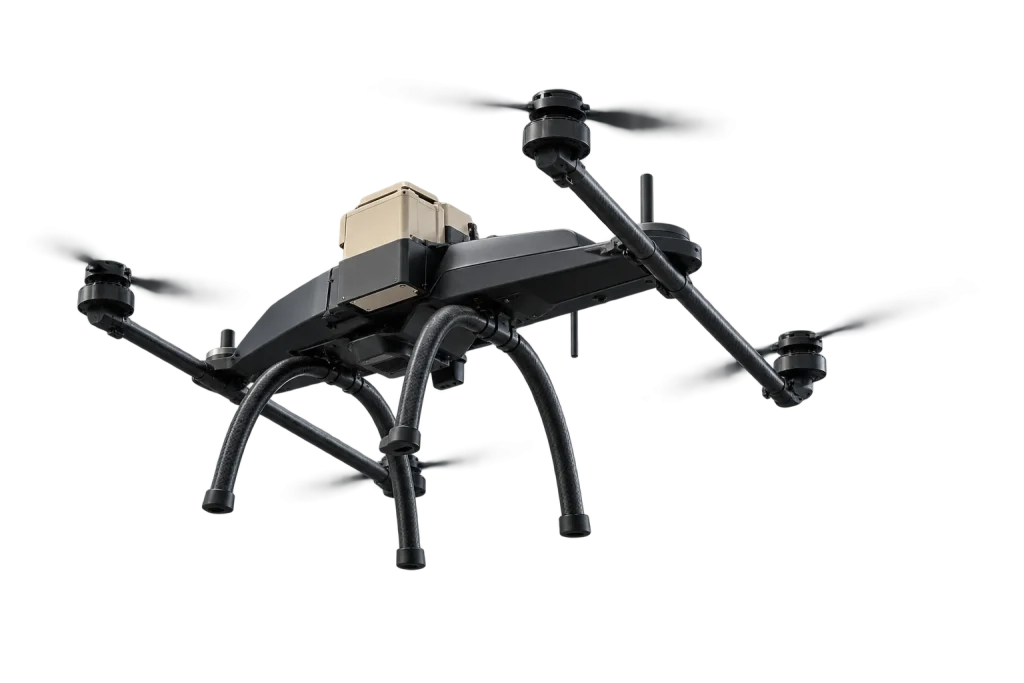

The TX-20M is designed for long endurance and rapid deployment. Its quick-connect, highly modular structure enables deployment and recovery without tools. Aviation carbon-fiber construction provides excellent surface quality and high consistency, while IPX5 waterproof protection supports operation in complex environments.
[ PRODUCT HIGHLIGHTS ]
Delivers up to 120 minutes of flight time with zero payload.
Quick-connect modular construction enables fast, tool-free deployment and recovery.
Supports payloads up to 10 kg within a 20 kg maximum take-off weight.
IPX5 waterproofing and aviation-grade carbon-fiber construction support.
[ KEY SPECIFICATIONS ]
Up to 120 minutes with zero payload.
Maximum take-off weight of 20 kg.
Supports payloads up to 10 kg.
Designed for operations up to 5500 m altitude.
[ FREQUENTLY ASKED QUESTIONS ]
The TX-20M supports a maximum payload of 10 kg.
The TX-20M provides up to 120 minutes of flight time with zero payload. Flight time is 90 min at 2 kg, 70 min at 4 kg, and 30 min at 10 kg payload.
The TX-20M features a quick-connect, highly modular structure designed for deployment and recovery without tools.
The TX-20M features IPX5 waterproof protection and an operating temperature range of -20°C to 55°C, supporting operation in complex environments.
The TX-20M has a cruising speed of 15 m/s, a maximum climbing speed of 3 m/s, and a specified altitude of 5500 m.
