[ VTOL SERIES ]

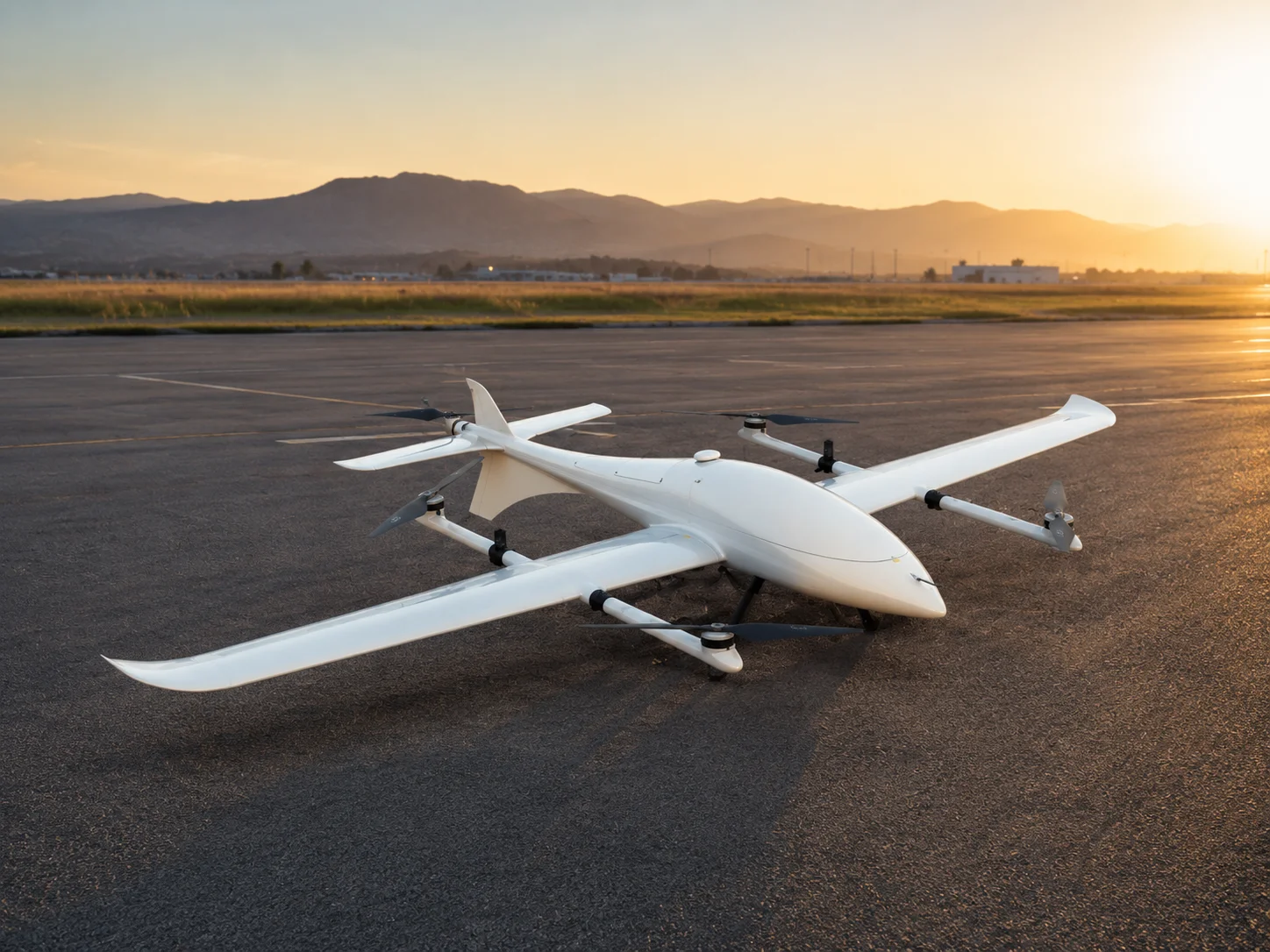

The TX-10V is a compact fixed-wing VTOL platform with a wingspan of 2398 mm and a maximum take-off weight of 10.5 kg. Its modular quick-disassembly structure supports deployment and recovery without tools, while its long-endurance configuration provides up to 3.5 hours of flight time with a 1.6 kg payload.
An all-moving horizontal tail integrates the horizontal stabilizer and elevator to enhance flight mobility. The airframe is constructed from aviation carbon fiber composites.
[ PRODUCT HIGHLIGHTS ]
2398 mm wingspan supports compact transport and efficient field deployment.
Provides up to 3.5 hours of flight time while carrying a 1.6 kg payload.
Quick-release modular design supports fast, efficient tool-free deployment.
All-moving horizontal tail supports responsive control and improved flight mobility.
[ KEY SPECIFICATIONS ]
Up to 3.5 hours with a 1.6 kg payload.
Maximum take-off weight rated at 10.5 kg.
Supports payloads of up to 2.3 kg.
Designed for flight altitudes up to 5,000 m.
[ FREQUENTLY ASKED QUESTIONS ]
The TX-10V supports a maximum payload of 2.3 kg.
The TX-10V provides 3.5 hours of flight time with a 1.6 kg payload and 2.5 hours with a 2.3 kg payload.
The TX-10V uses a quick-disassembly, highly modular structure that supports deployment and recovery without tools.
Its all-moving horizontal tail integrates the horizontal stabilizer and elevator, improving flight mobility.
The TX-10V has a speed range of 18–35 m/s, a cruising speed of 19 m/s, and a specified altitude of 5000 m.
